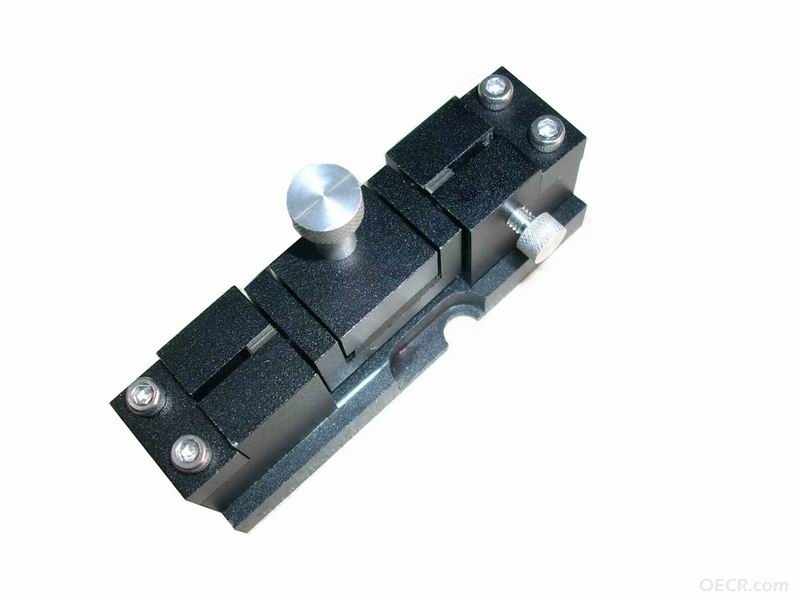

挤压偏振控制器

cofiber604

绵阳超光通信有限公司

联系人： 刘小姐
电话：0816-2384466分机607   18681668365
公司网站：www.cofiber.net
邮箱：cofiber604@cofiber.net
QQ：604201228



Features:

Low Loss
Low backreflection
Compact
Easy to connect
Low cost
Insensitive to wavelength variations
Works with fibers of any size

Applications:

High speed telecommunication systems
WDM systems
CATV systems
Fiber lasers
Fiber sensor systems
PM fiber systems
Antenna remoting systems

Specifications:

Intrinsic Insertion Loss        < 0.05 dB
Return Loss        > 65 dB
Operating Wavelength        480 nm, 633 nm, 780 nm, 820 nm, 980 nm, 1060 nm,1260 ~1650 nm
Extinction Ratio        > 40 dB
Operating Temperature        -40 ~ 85 °C
Storage Temperature        -40 ~ 85 °C
Dimensions（mm）        80 x28 x 25.4(W x H x L)
(Values are referenced without connectors)
