刚刚设计的手机镜头，不知道好不好希望大家评价评价

zhouxiaojun

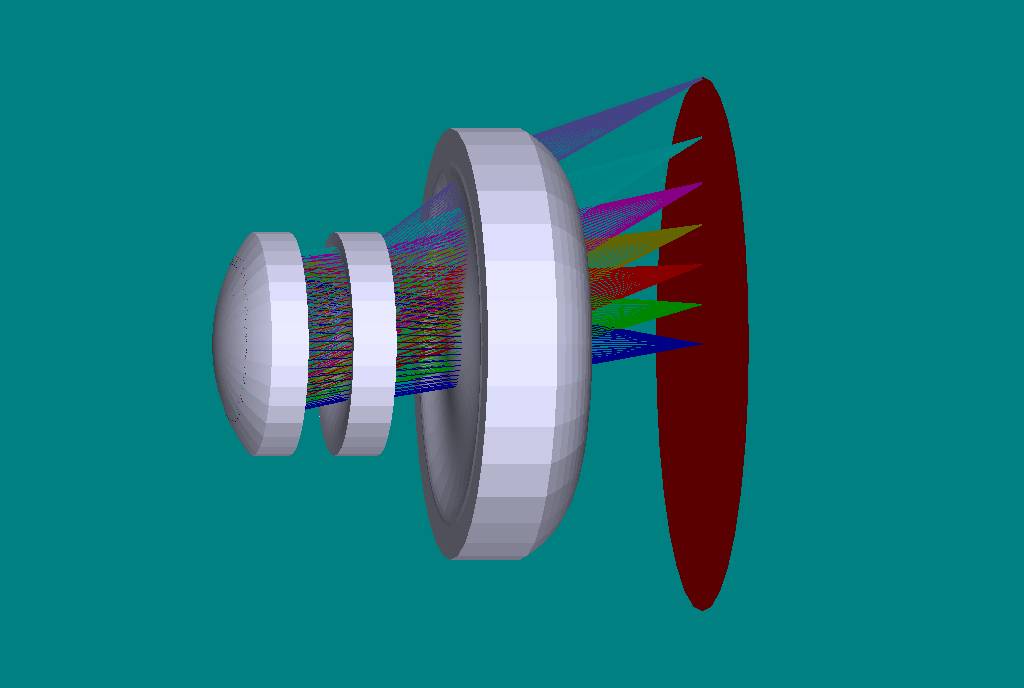

<P>三维图</P>
<P>焦距5.6，视场62°</P><img src="data/attachment/forum/dvbbs/2004-9/2004911214628838.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-9/2004911214628838.jpg\');}" onmousewheel="return imgzoom(this);" alt="" />

[此贴子已经被作者于2004-9-11 22:46:55编辑过]

愚人

不知道F#是多少

zhouxiaojun

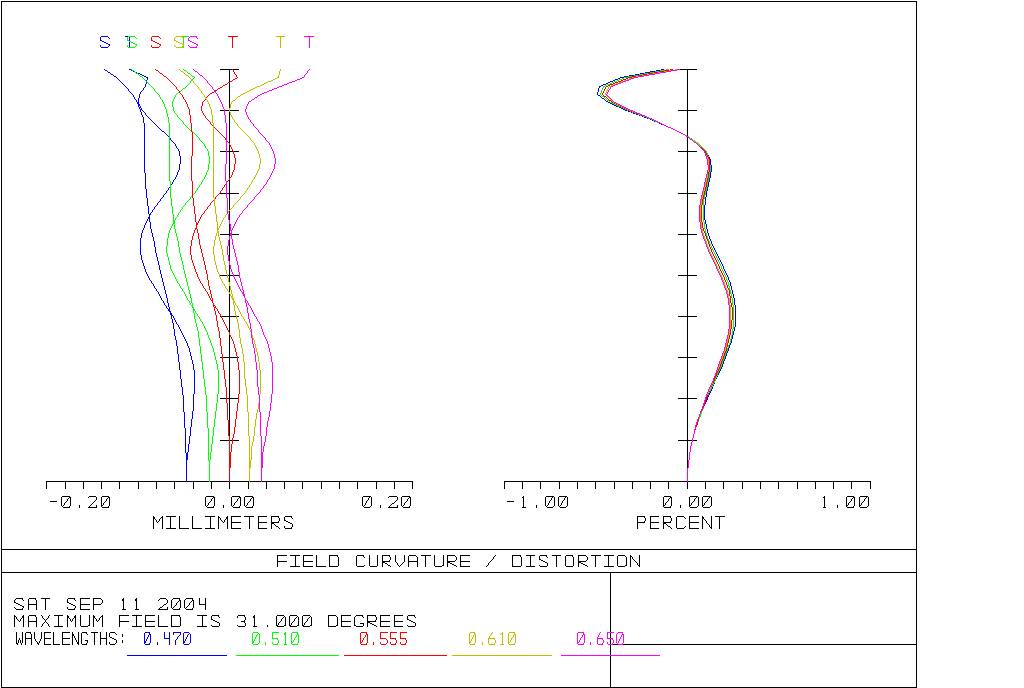

<img src="data/attachment/forum/dvbbs/2004-9/2004911215143993.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-9/2004911215143993.jpg\');}" onmousewheel="return imgzoom(this);" alt="" />
畸变图

zhouxiaojun

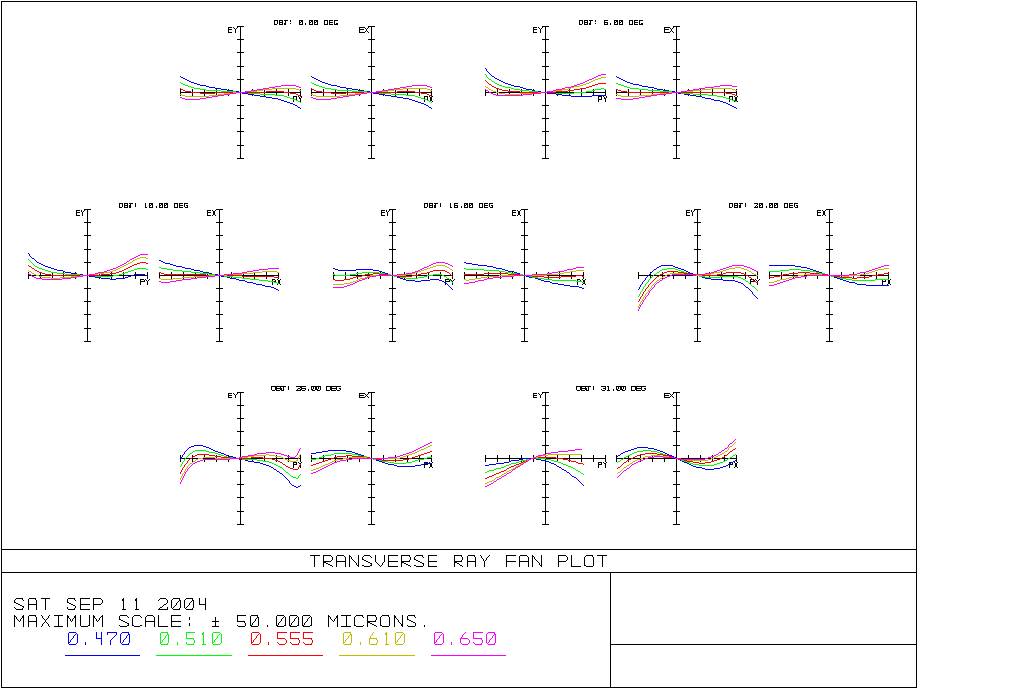

<img src="data/attachment/forum/dvbbs/2004-9/2004911215230459.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-9/2004911215230459.jpg\');}" onmousewheel="return imgzoom(this);" alt="" />
像差图

zhouxiaojun

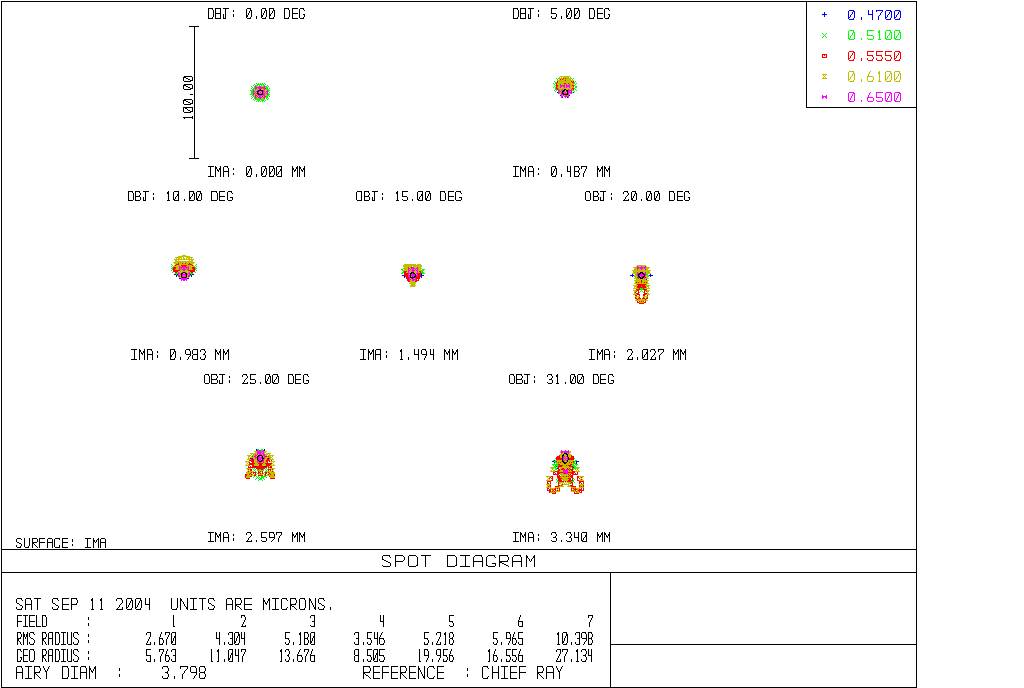

<img src="data/attachment/forum/dvbbs/2004-9/2004911215317922.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-9/2004911215317922.jpg\');}" onmousewheel="return imgzoom(this);" alt="" />
点列图

zhouxiaojun

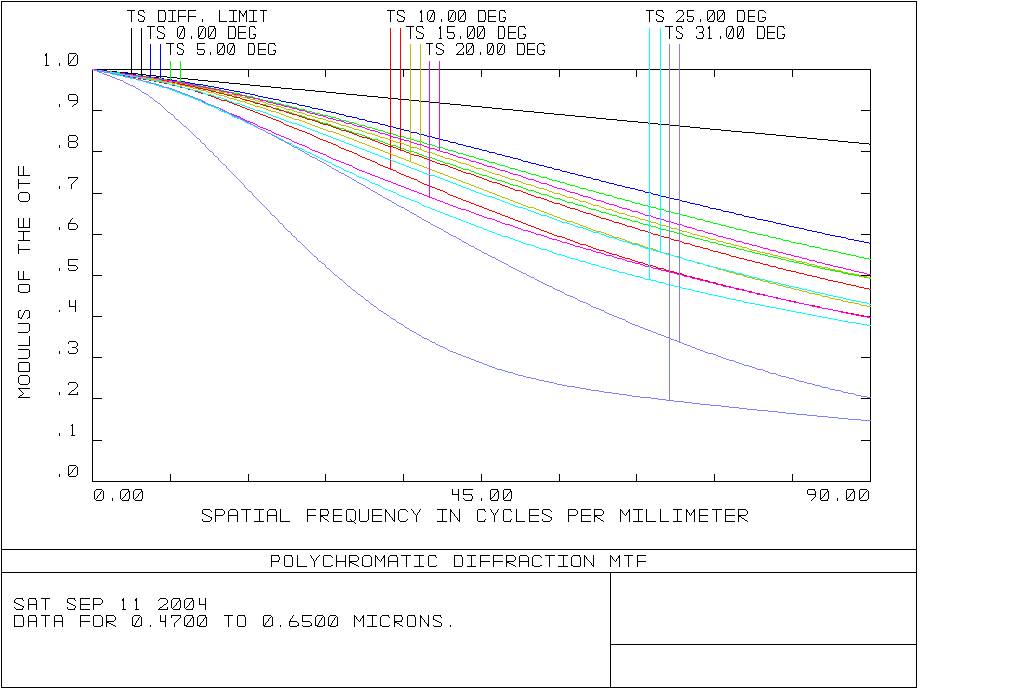

<img src="data/attachment/forum/dvbbs/2004-9/200491121543380.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-9/200491121543380.jpg\');}" onmousewheel="return imgzoom(this);" alt="" />
传函图

轻轻海风

请问总长多少？ 还有sensor的边缘入射角是多少？

zta

看样子不错

zta

周先生不知你现在在哪？

redflag

chief ray angle?

wushenjian

几个非球面,装配工艺性好吗?

qhw

应该说不错
