ASAP singlet 的建模

simem

<P align=center> <a href="http://bbs.oecr.com/dispbbs.asp?boardID=27ID=10804page=1" target="_blank" ><FONT color=#000000>按照s</FONT></A>teed 的贴子:  <a href="http://bbs.oecr.com/dispbbs.asp?boardID=27ID=10804page=1" target="_blank" ><FONT color=#000000>ASAP入门介绍：ASAP6hours</FONT></A>  做的模型</P>
<P align=center> </P>
<P align=center><img src="data/attachment/forum/dvbbs/2004-10/2004102694817760.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-10/2004102694817760.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /></P>
<P align=center>3D模型
<img src="data/attachment/forum/dvbbs/2004-10/2004102610531316.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-10/2004102610531316.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /></P>

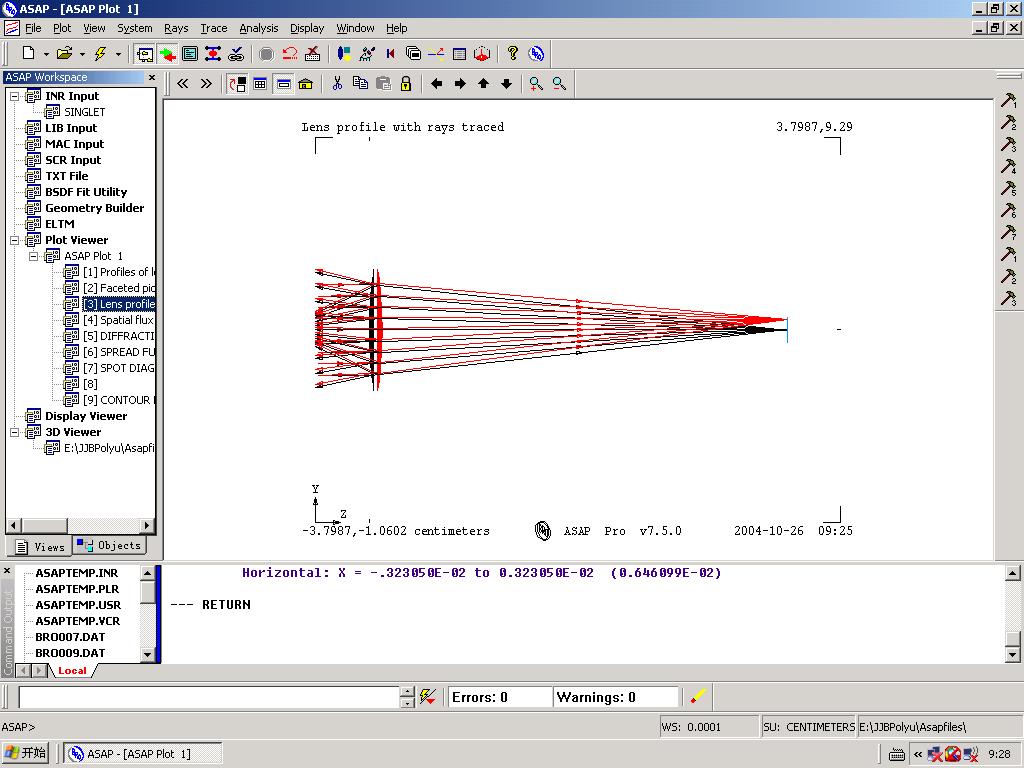

<P align=center>光线追迹
<img src="data/attachment/forum/dvbbs/2004-10/200410269496666.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-10/200410269496666.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /></P>
<P align=center>光源光强分布</P>
<P align=center><img src="data/attachment/forum/dvbbs/2004-10/2004102694916471.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-10/2004102694916471.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /></P>
<P align=center>轴上点扩散函数</P>
<P align=center><img src="data/attachment/forum/dvbbs/2004-10/20041026101029471.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-10/20041026101029471.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /></P>

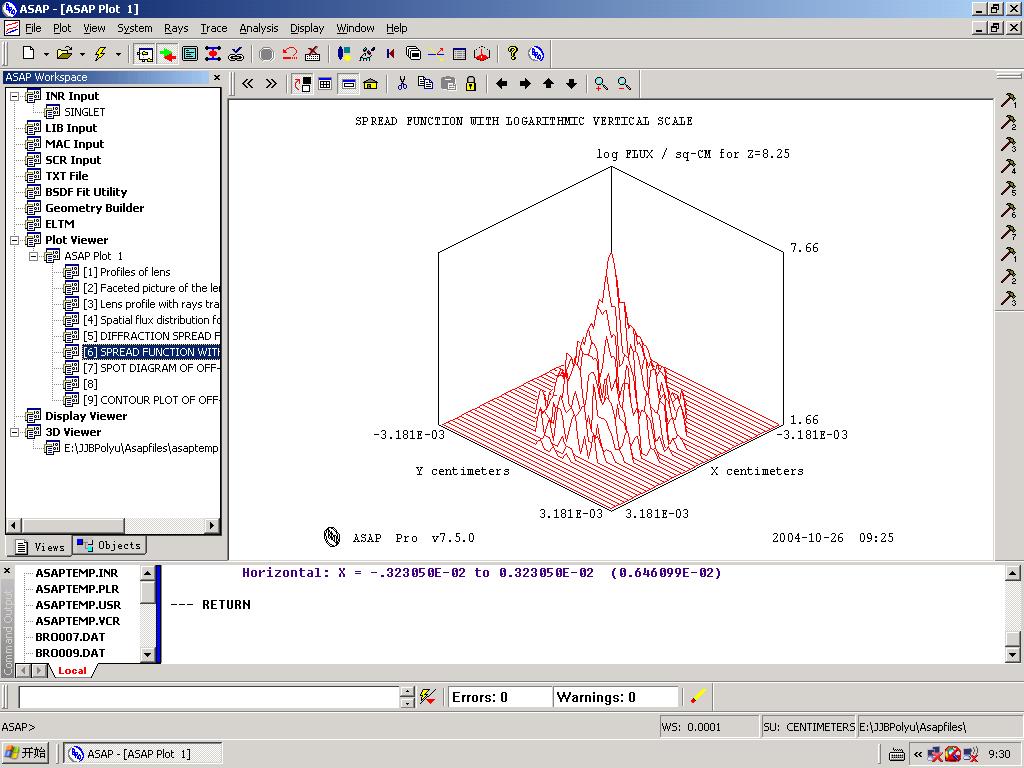

<P align=center>带慧差的点扩散函数</P>


<P align=center><img src="data/attachment/forum/dvbbs/2004-10/200410261091525.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-10/200410261091525.jpg\');}" onmousewheel="return imgzoom(this);" alt="" /></P>

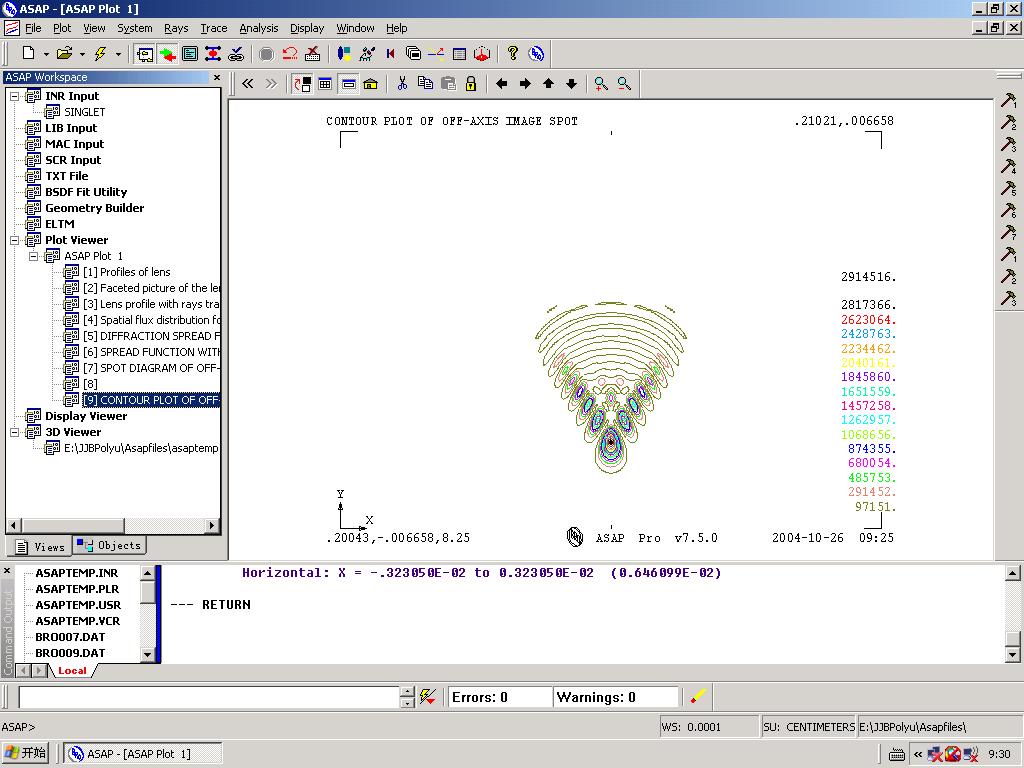

<P align=center>慧差图</P>
<P align=center>
</P>

leo_kkcj

<P>老大，我还没入门，只有图没文字说明看不懂呀！</P>

simem

<P>图的下面有文字啊.</P><P>建模的方法steed贴子上有, Script格式编程输入. </P>

leo_kkcj

<P>出3D图需要定义Ray Trace吗？我的就是出不了图,</P><P>这是Builder里的Command</P><P>UNITS MILLIMETERS 'Watt'
WAVELENGTHS 550 NANOMETERS
MEDIA 1.613 'SK4'
MEDIA 1.606 'F15'
COATINGS PROPERTIES; 0 1 'TRANSMIT'
COATINGS PROPERTIES; 0 0 'ABSORB'
ENT OBJECT;OPTICAL Z 0.0 44.55  0 ELLIPSE 16.9 16.9 'L1.FRONT'
INTERFACE COATING TRANSMIT AIR SK4
ENT OBJECT;OPTICAL Z 5 -436.6  0 ELLIPSE 16.9 16.9 'L1.BACK'
INTERFACE COATING TRANSMIT AIR SK4
RETURN
$IO VECTOR REWIND
$IO PLOT CANCEL
$PLOT OFF
PLOT FACETS 5 5
$VIEW</P><P>但当我执行Preview all后</P><P>显示:</P><P>  System being written to file  geo_bld.sys
         0 rays defined
  System being read from file  geo_bld.sys</P><P>  *** Some objects temporarily not CONSIDERed
我下一部该怎么做.</P><P>谢谢老大</P>

simem

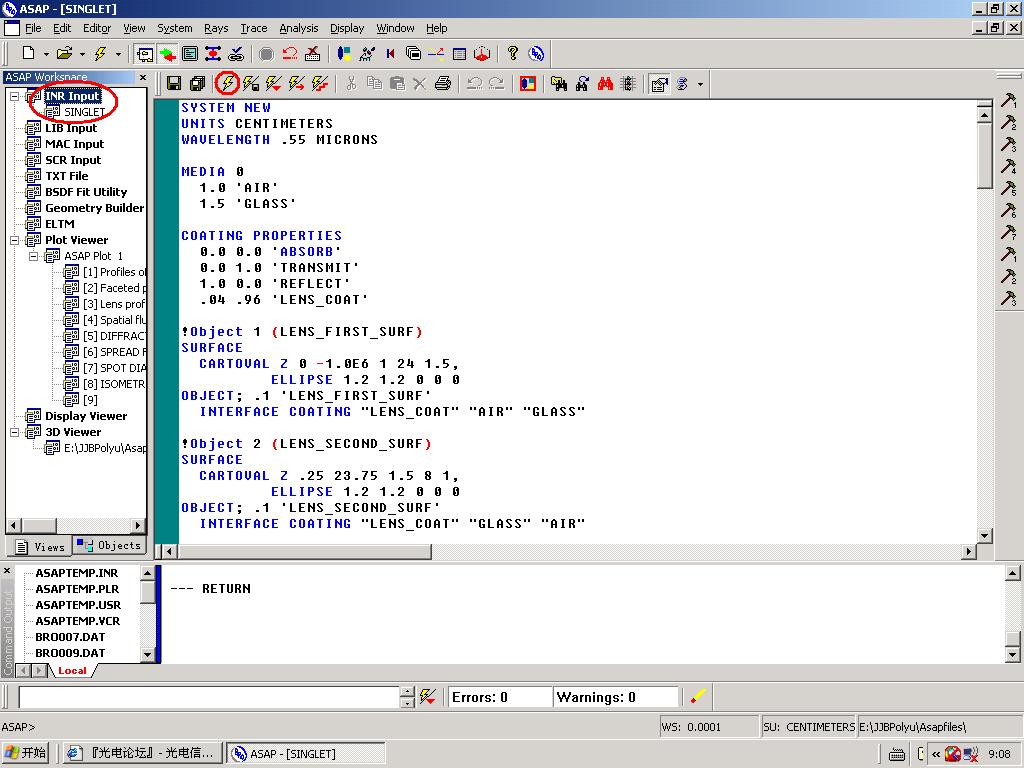

<P>指令不从Builder里的Command输入, 而是选左边的INR菜单, 再建立新文件, 在INR文件中输入, 检查错误后再Run就可以. 见图中的红圈圈.</P>
<P><img src="data/attachment/forum/dvbbs/2004-11/2004112091749732.jpg" border="0" onload="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onmouseover="if(this.width>screen.width*0.7) {this.resized=true; this.width=screen.width*0.7; this.style.cursor=\'hand\'; this.alt=\'Click here to open new window\nCTRL+Mouse wheel to zoom in/out\';}" onclick="if(!this.resized) {return true;} else {window.open(\'data/attachment/forum/dvbbs/2004-11/2004112091749732.jpg\');}" onmousewheel="return imgzoom(this);" alt="" />
</P>

simem

Run的指令是个象闪电的按钮.
