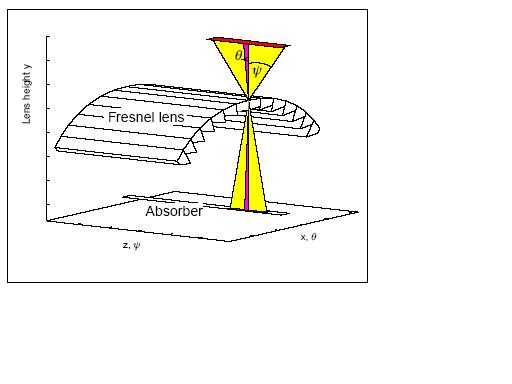

用ZEMAX或CODEV选择何种表面类型可以达到弧型的菲涅耳透镜,如图所示样品

讨论菲涅耳

<br/>

hjl670203

<p>我也想知道ZEMAX关于<strong>菲涅耳的面型使用,那位大师能发扬风格,指点一,二,感谢不尽.</strong></p>

cosinezheng

好像都不行吧，ZEMAX只是把它当作理想的fresnel面，但不能画出浮雕结构来。

hjoptical

<p>做成平面的可以,就是做不到弧形的</p><p><span lang="EN-US" style="FONT-SIZE: 10.5pt; FONT-FAMILY: Times New Roman; mso-bidi-font-size: 12.0pt; mso-fareast-font-family: 宋体; mso-font-kerning: 1.0pt; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA;"><shapetype id="_x0000_t75" stroked="f" filled="f" path="m@4@5l@4@11@9@11@9@5xe" opreferrelative="t" ospt="75" coordsize="21600,21600"><stroke joinstyle="miter"></stroke><formulas><f eqn="if lineDrawn pixelLineWidth 0"></f><f eqn="sum @0 1 0"></f><f eqn="sum 0 0 @1"></f><f eqn="prod @2 1 2"></f><f eqn="prod @3 21600 pixelWidth"></f><f eqn="prod @3 21600 pixelHeight"></f><f eqn="sum @0 0 1"></f><f eqn="prod @6 1 2"></f><f eqn="prod @7 21600 pixelWidth"></f><f eqn="sum @8 21600 0"></f><f eqn="prod @7 21600 pixelHeight"></f><f eqn="sum @10 21600 0"></f></formulas><path oconnecttype="rect" gradientshapeok="t" oextrusionok="f"></path><lock aspectratio="t" vext="edit"></lock></shapetype><shape id="_x0000_i1025" type="#_x0000_t75" style="WIDTH: 414.75pt; HEIGHT: 280.5pt;"><imagedata otitle="Fresnel lens2" src="file:///C:/DOCUME~1/hgh/LOCALS~1/Temp/msoclip1/01/clip_image001.jpg"></imagedata></shape></span></p>
